Metaalborenset HSS

170-delige HSS metaalborenset, rolgewalst volgens DIN 338N, in metalen rood gelakte kist met twee sluitingen en metalen vakindeling. Afmeting 330x234x47 mm.

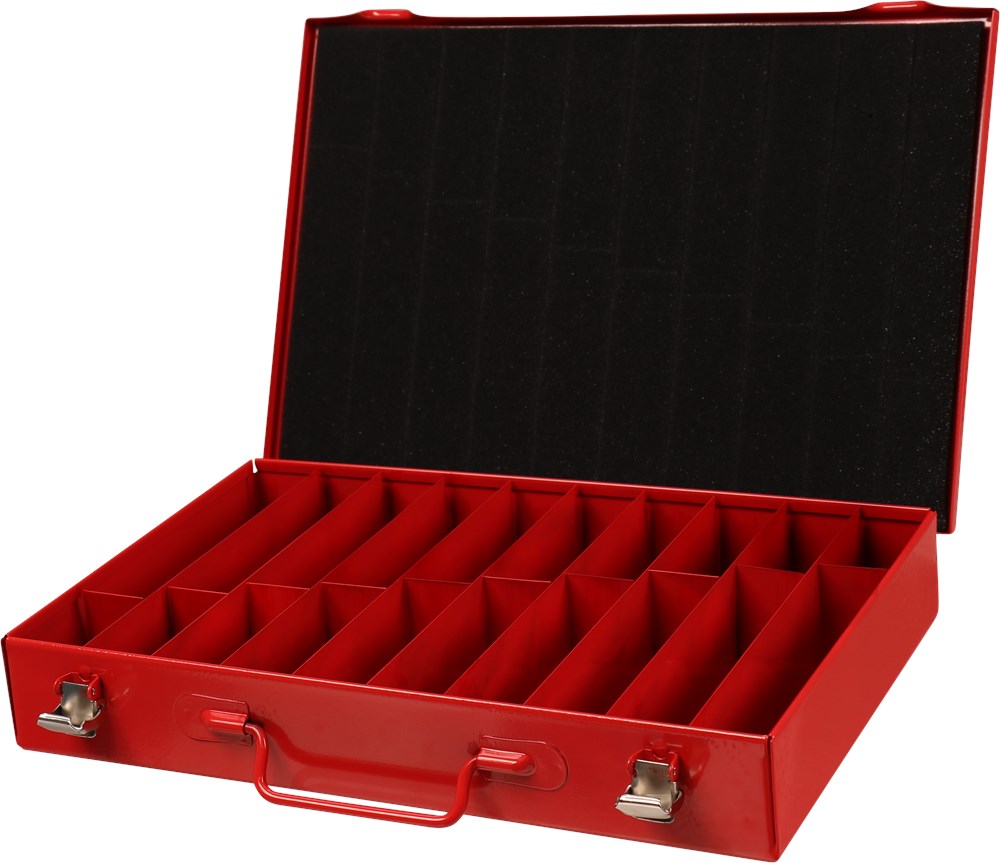

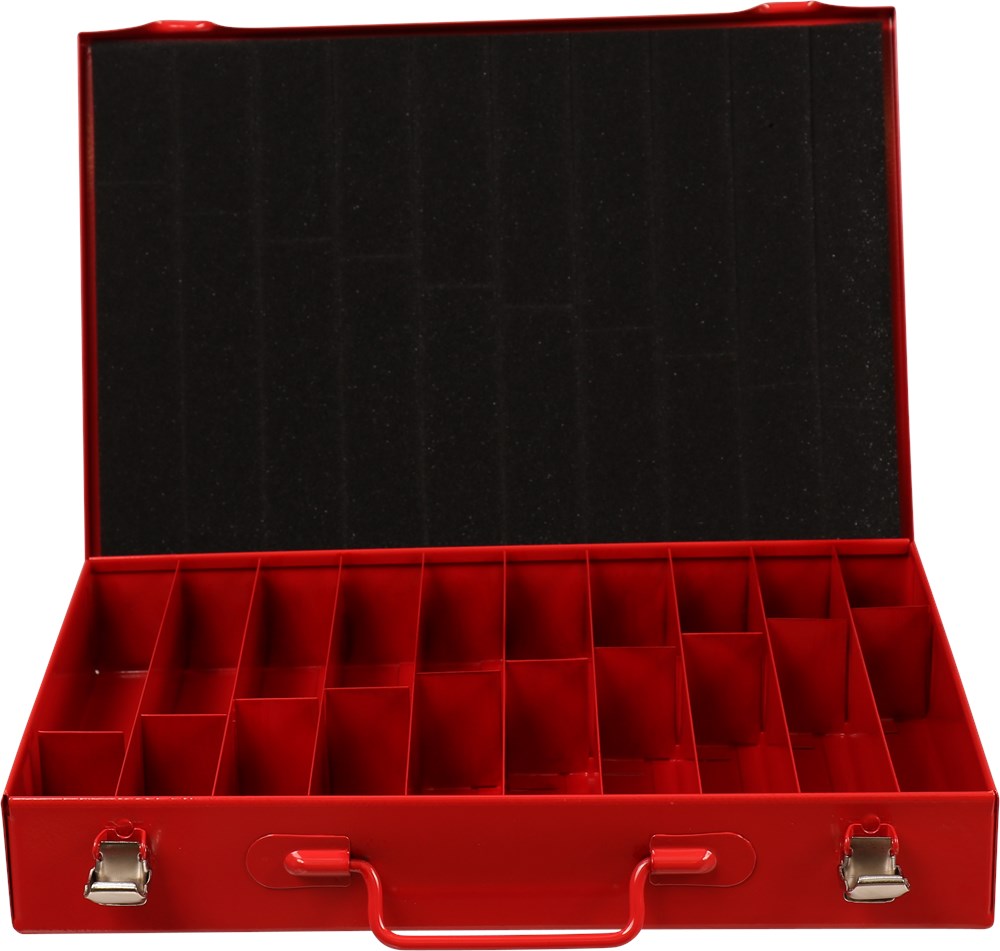

Artikel 1514998 is de lege kist.

Inhoud:
diam. in mm___spiraallengte in mm___lengte in mm___stuks
1,0_____________12______________________34______________10
1,5_____________18______________________40______________10
2,0_____________24______________________49______________10
2,5_____________30______________________57______________10
3,0_____________33______________________61______________10
3,5_____________39______________________70______________10
4,0_____________43______________________75______________10
4,5_____________47______________________80______________10
5,0_____________52______________________86______________10
5,5_____________57______________________93______________10
6,0_____________57______________________93______________10
6,5_____________63_____________________101______________10
7,0_____________69_____________________109______________10
7,5_____________69_____________________109______________10
8,0_____________75_____________________117______________10
8,5_____________75_____________________117_______________5
9,0_____________81_____________________125_______________5
9,5_____________81_____________________125_______________5
10,0____________ 87_____________________133_______________5
