Metaalborenset HSS
Artikel nr.: 1514999

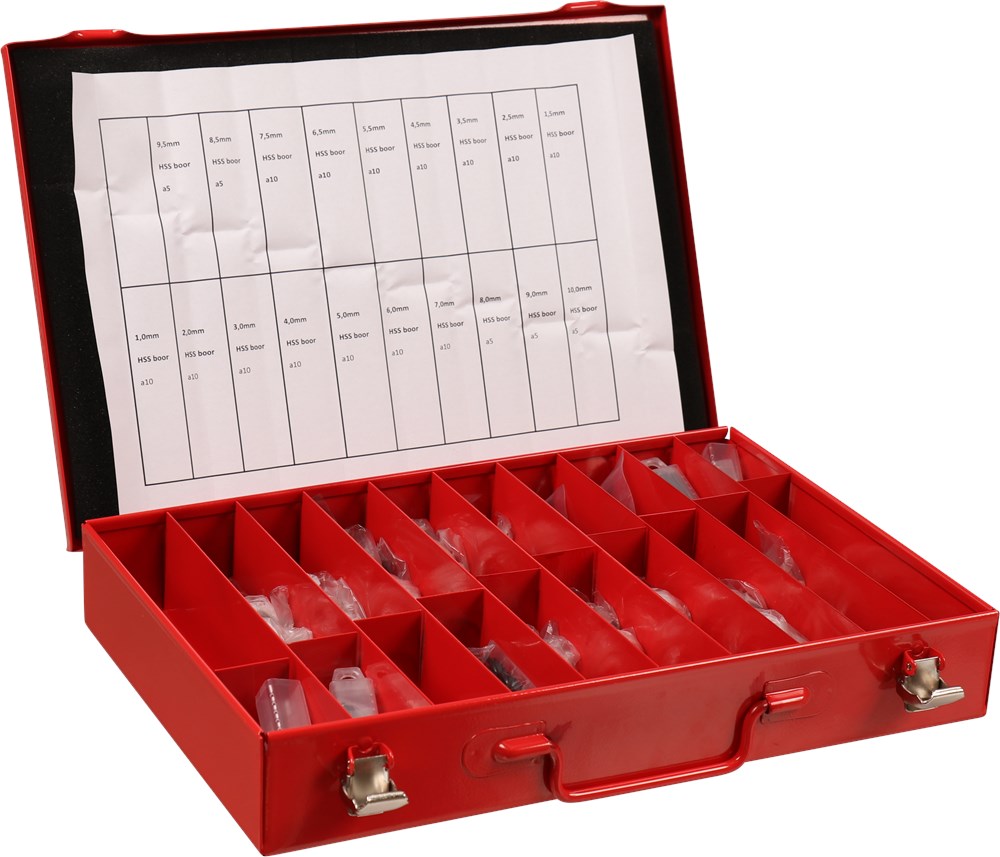

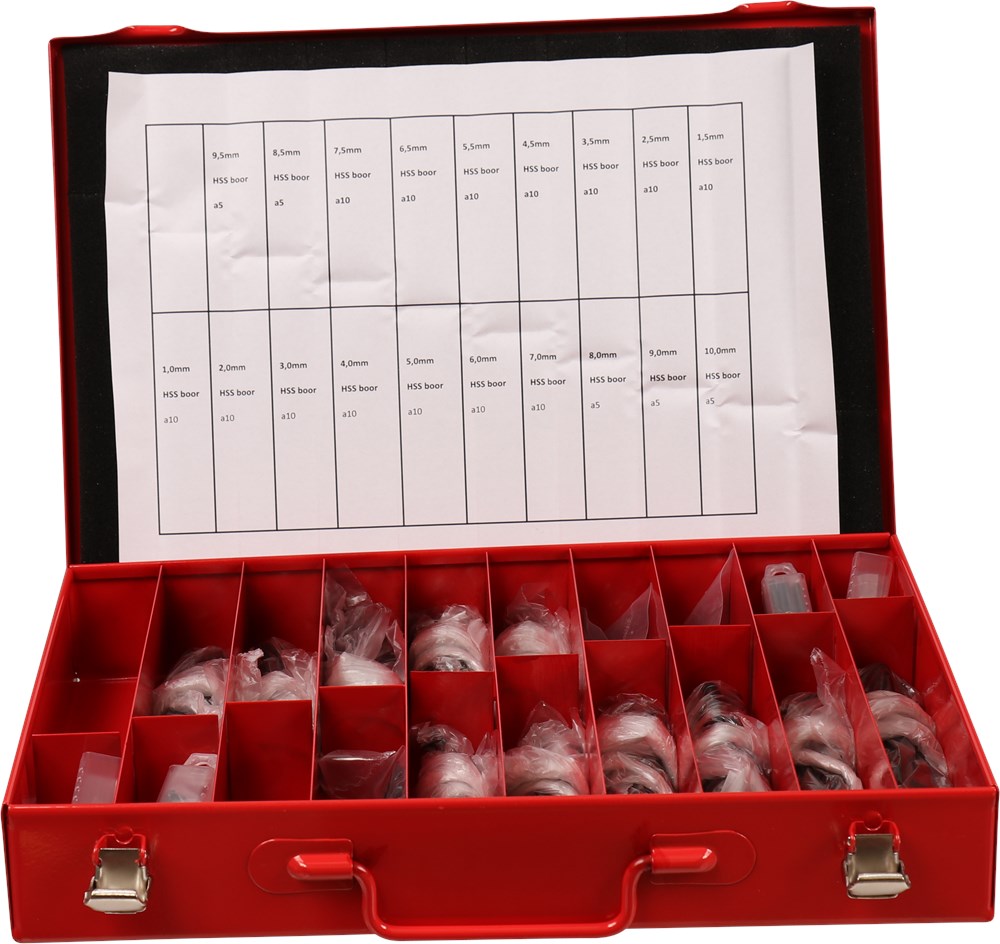

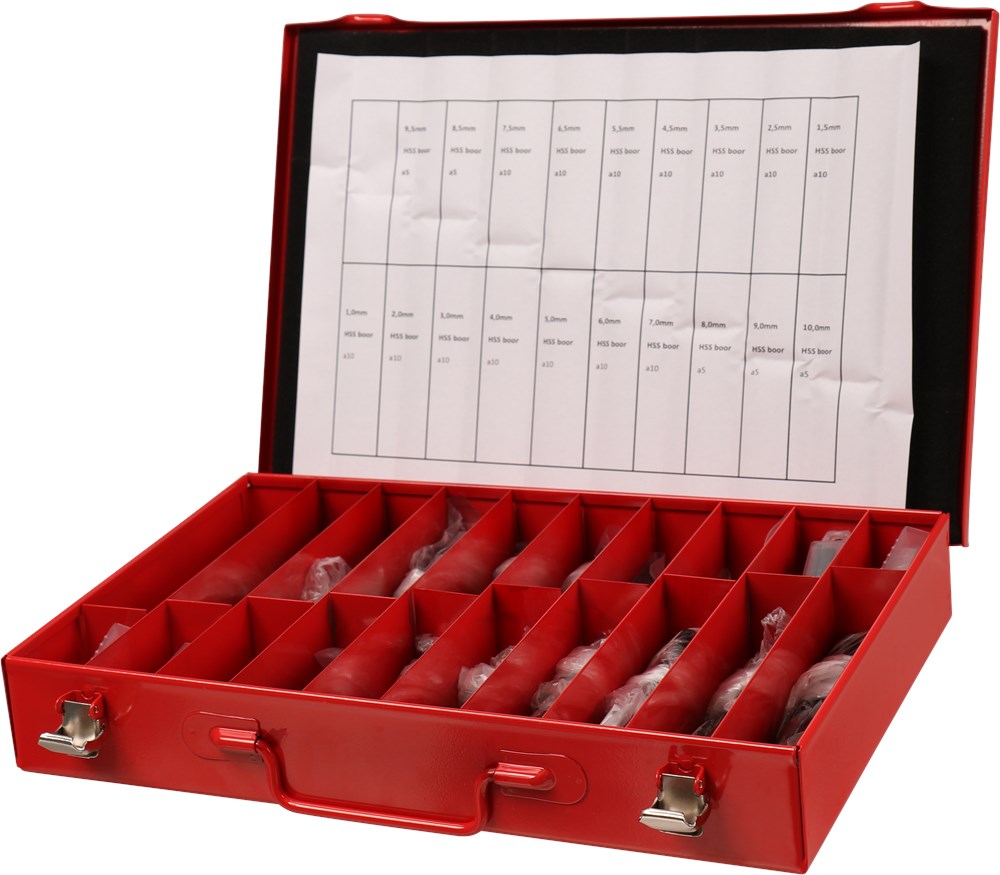

170-delige HSS metaalborenset, rolgewalst volgens DIN 338N, in metalen rood gelakte kist met twee sluitingen en metalen vakindeling. Afmeting 335x224x47 mm.
Artikel 1514998 is de lege kist.
Inhoud:
diam. in mm___spiraallengte in mm___lengte in mm___stuks
1,0_____________12______________________34______________10
1,5_____________18______________________40______________10
2,0_____________24______________________49______________10
2,5_____________30______________________57______________10
3,0_____________33______________________61______________10
3,5_____________39______________________70______________10
4,0_____________43______________________75______________10
4,5_____________47______________________80______________10
5,0_____________52______________________86______________10
5,5_____________57______________________93______________10
6,0_____________57______________________93______________10
6,5_____________63_____________________101______________10
7,0_____________69_____________________109______________10
7,5_____________69_____________________109______________10
8,0_____________75_____________________117______________10
8,5_____________75_____________________117_______________5
9,0_____________81_____________________125_______________5
9,5_____________81_____________________125_______________5
10,0____________ 87_____________________133_______________5
Artikel 1514998 is de lege kist.
Inhoud:
diam. in mm___spiraallengte in mm___lengte in mm___stuks
1,0_____________12______________________34______________10
1,5_____________18______________________40______________10
2,0_____________24______________________49______________10
2,5_____________30______________________57______________10
3,0_____________33______________________61______________10
3,5_____________39______________________70______________10
4,0_____________43______________________75______________10
4,5_____________47______________________80______________10
5,0_____________52______________________86______________10
5,5_____________57______________________93______________10
6,0_____________57______________________93______________10
6,5_____________63_____________________101______________10
7,0_____________69_____________________109______________10
7,5_____________69_____________________109______________10
8,0_____________75_____________________117______________10
8,5_____________75_____________________117_______________5
9,0_____________81_____________________125_______________5
9,5_____________81_____________________125_______________5
10,0____________ 87_____________________133_______________5
Technische gegevens - Techspecs fabrikant
boordiameter
1,0-10,0 mm
lengte (boor)
34-133 mm
aantal (delen, bestaande uit)
170 st
bewerking (oppervlaktebehandeling)
rolgewalst
diameter (schacht)
1,0-10,0 mm
DIN
338RN
oplopend per
0,5 mm
snijhoek
118
toepassing (materiaal)
metaal
materiaal
HSS
